What Is a Circular Saw? Your Essential Guide to This Power Tool Workhorse

If you’re tackling home projects, framing a deck, cutting plywood for a bookshelf, or trimming lumber to length, the circular saw is the power tool that’ll do most of the heavy lifting. It’s versatile, portable, and far more approachable than many DIYers expect. But what exactly is a circular saw, and how does it differ from other saws in your arsenal? This guide breaks down the definition, mechanics, types, and practical applications of this shop staple, plus what to look for when buying one and how to use it safely.

Understanding the Circular Saw: Definition and Core Components

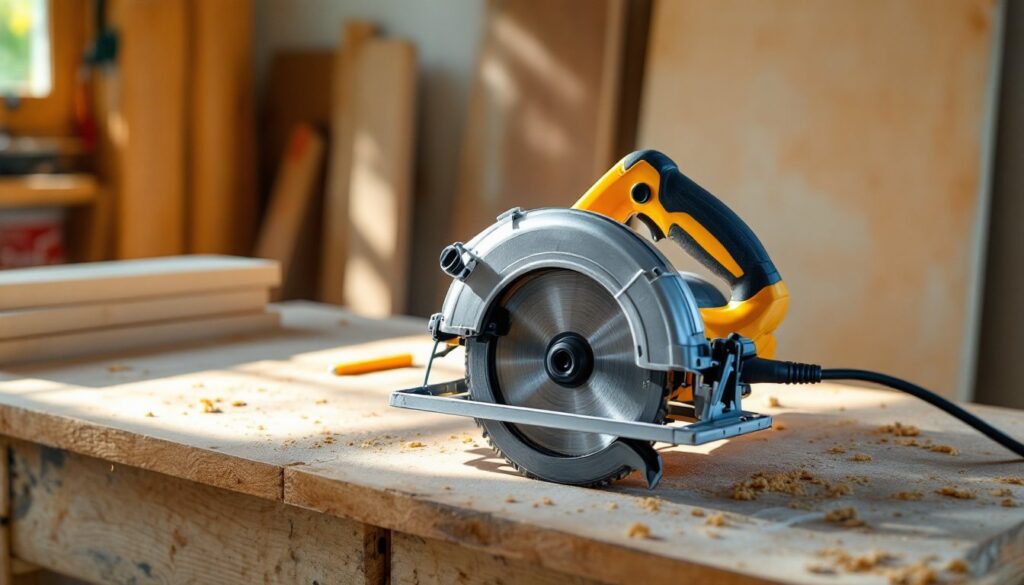

A circular saw is a handheld power tool that uses a motor-driven, round blade to make straight cuts through wood, plywood, composites, and some metals or masonry (with the right blade). The blade spins at high speed, typically 5,000 to 6,000 RPM, allowing it to rip, crosscut, or bevel materials quickly and with minimal effort.

Unlike miter saws or table saws that are stationary, the circular saw is portable. You bring the tool to the workpiece, not the other way around. That portability makes it indispensable on job sites and in home workshops alike.

The core components include:

• Motor housing: Contains the electric or battery-powered motor: typically rated between 10 to 15 amps for corded models.
• Blade: Ranges from 6½ inches to 7¼ inches in diameter for most DIY and contractor models. The 7¼-inch is standard and cuts to a maximum depth of about 2⅜ inches at 90°.
• Base plate (shoe): A flat metal or composite platform that rides along the material, ensuring stability and accurate depth.
• Depth and bevel adjustments: Levers or knobs that let you set cut depth and tilt the blade up to 45° or 50° for angled cuts.
• Blade guard: A spring-loaded safety cover that retracts as you push into the cut, then snaps back over the blade when you pull away.

Understanding these parts helps you adjust the saw properly and troubleshoot issues when cuts aren’t square or the blade binds.

How Circular Saws Work: The Mechanics Behind the Cut

When you pull the trigger, the motor spins the arbor, a shaft onto which the blade is mounted. The arbor is threaded and secured by a bolt and washer (some designs use a spindle lock for blade changes). As the blade rotates, its carbide-tipped teeth shear through wood fibers or other materials.

The direction of rotation matters. Most circular saws spin the blade upward from the front, which means the teeth exit the material on the top surface. This can cause tearout (splintering) on the visible face. To minimize this, pros often score the cut line with a utility knife or place the good side of plywood face-down.

Depth of cut is controlled by raising or lowering the base plate relative to the blade. For most cuts, set the blade to protrude about ¼ inch below the material, deep enough to cut cleanly without excessive blade exposure.

Bevel cuts are made by tilting the entire motor and blade assembly. The base plate remains flat against the workpiece, but the blade angles through it. This is essential for compound miters in trim work or chamfering edges.

The saw’s torque and RPM determine how smoothly it powers through dense or thick stock. Higher amp ratings generally translate to more torque, which helps prevent bogging down in hardwoods or when ripping long boards.

Types of Circular Saws Every DIYer Should Know

Not all circular saws are built the same. The two main form factors, sidewinder and worm drive, offer distinct advantages.

Sidewinder vs. Worm Drive Saws

Sidewinder (direct-drive) saws are the most common. The motor sits perpendicular to the blade, mounted on the right side of the saw (when viewed from behind). They’re lighter, usually 7 to 9 pounds, and spin faster (around 6,000 RPM), which is great for crosscuts and general carpentry. The compact design makes them easier to handle overhead or in tight spaces. Blade changes are straightforward, and these models are typically more affordable.

Worm drive saws orient the motor in line with the blade, using a pair of gears (the “worm”) to transfer power. This layout places the motor behind the blade, shifting weight rearward and giving you better sightlines along the cut. Worm drives run at lower RPM (around 4,500) but deliver higher torque, making them ideal for ripping thick lumber or cutting wet or dense materials. They’re heavier, 10 to 13 pounds, and the gear oil requires occasional maintenance, but framers and contractors often prefer them for sustained, heavy-duty work.

Beyond these, you’ll also encounter:

• Cordless circular saws: Powered by 18V to 60V lithium-ion batteries. Modern brushless motors deliver performance close to corded models, and the freedom from cords is a game-changer for roofing, deck building, or any outdoor project.
• Compact (trim) saws: 4½-inch to 6½-inch blade models designed for one-handed use on lighter materials, think plywood, MDF, or 2x stock.
• Track saws: Circular saws that ride on a guide rail, delivering table-saw-level accuracy for sheet goods. Not a separate category, but worth noting if you’re breaking down full sheets of plywood regularly.

Choose based on your typical projects. Weekend warriors building fences or cutting framing lumber will thrive with a sidewinder. If you’re tackling heavy framing or prefer the ergonomics of a worm drive, the extra weight is worth it.

Common Uses and Applications for Circular Saws in Home Projects

Circular saws excel at tasks where portability and speed matter. Here’s where they shine:

• Framing: Cutting 2x4s, 2x6s, and dimensional lumber to length for walls, rafters, or joists. A 7¼-inch blade slices through a 2×6 (actual dimensions 1½” x 5½”) in one pass.
• Decking and fencing: Trimming deck boards, fence pickets, and posts on-site. Cordless models are especially handy here.
• Plywood and sheet goods: Breaking down 4×8 sheets into manageable pieces. A straightedge or clamp-on guide ensures clean, square cuts.
• Roofing: Cutting sheathing, trimming rafters, or notching joists. The circular saw’s portability beats hauling a miter saw onto the roof.
• Trim and siding: Crosscutting siding, fascia, or trim boards. While a miter saw gives cleaner bevels for trim, a circular saw with a fine-tooth blade and careful setup can deliver comparable results.
• Demolition: Cutting through old framing, subfloors, or nail-embedded lumber. Use a demo blade or carbide-tipped blade rated for nail contact.

The circular saw won’t replace a table saw for ripping long, narrow strips with repeatable precision, nor will it match a miter saw for perfect 45° miters on crown molding. But for most rough carpentry and on-site cuts, it’s the go-to tool. Pros on job sites often carry both a circular saw and a miter saw, using each where it fits best.

When cutting dimensional lumber, remember that nominal sizes differ from actual. A 2×4 measures 1½” x 3½”, and a 2×8 is 1½” x 7¼”. Set your depth accordingly to avoid binding or incomplete cuts.

Key Features to Look for When Choosing a Circular Saw

Shopping for a circular saw? Here’s what separates a solid workhorse from a frustrating tool:

• Blade size: 7¼-inch is the standard for full-depth cuts through 2x lumber. Smaller blades (6½-inch) are fine for lighter work and save weight.
• Motor power: For corded saws, look for at least 12 to 15 amps. Cordless models should use 18V or higher batteries: brushless motors deliver better runtime and power.
• Base plate (shoe) material: Cast aluminum or magnesium bases stay flatter and resist flexing better than stamped steel. A warped shoe ruins cut accuracy.
• Bevel capacity: Most saws tilt to 45°, but some offer 50° or 55°, useful for specialty cuts. Positive stops at common angles (22.5°, 45°) speed setup.
• Depth adjustment: A smooth, easy-to-read depth lever saves time. Look for clear markings and a lock that holds firm under vibration.
• Sightlines and laser guides: Some models include LED lights or laser guides. These help, but a clear view of the blade and a quality straightedge matter more.
• Cord length (corded models): 8 to 10 feet is typical. Too short and you’re always hunting for an extension cord.
• Weight: Lighter saws (under 8 lbs) reduce fatigue. Heavier saws (10+ lbs) offer more stability and torque for demanding cuts.
• Electric brake: Stops the blade within seconds of releasing the trigger, safer and more efficient than waiting for coasting to stop.
• Dust port: Rare on handheld circular saws, but if you’re cutting indoors frequently, a model with a dust port and vacuum adapter keeps cleanup manageable.

If you’re new to power tools, a corded sidewinder from a reputable brand (DeWalt, Makita, Milwaukee, Bosch) in the $80–$150 range is a smart buy. Experienced users or pros might invest in a cordless worm drive or a premium track saw system.

Always budget for extra blades. The general-purpose blade that ships with most saws is mediocre. A 24-tooth rip blade handles framing, while a 60-tooth finish blade delivers cleaner crosscuts on hardwood or plywood.

Circular Saw Safety Tips for Beginners and Experienced Users

Circular saws are powerful and, if mishandled, dangerous. Follow these guidelines every time you cut:

Personal protective equipment (PPE):

• Safety glasses or goggles: Flying chips and sawdust are guaranteed.
• Hearing protection: Circular saws exceed 90 dB: prolonged exposure damages hearing.
• Dust mask or respirator: Especially when cutting treated lumber, MDF, or creating fine dust indoors.
• Work gloves (optional): Some prefer bare hands for better feel and control: if you wear gloves, avoid loose fabric that could catch.

Operational safety:

• Support your workpiece: Use sawhorses, a workbench, or scrap 2x4s to ensure the material is stable and the cutoff piece won’t pinch the blade. Never hold small pieces by hand while cutting.
• Set blade depth correctly: The blade should extend ¼ inch below the material. Deeper settings increase kickback risk and expose more blade.
• Check the blade guard: Ensure it moves freely and springs back into place. Never tie or pin it open.
• Keep both hands on the saw: One on the main handle, one on the front auxiliary handle. Never reach under the saw or near the blade while it’s running.
• Let the blade reach full speed before entering the cut. Plunging into material at low RPM can cause binding or kickback.
• Watch for kickback: If the blade binds, the saw can lurch backward toward you. Keep your body to the side of the cut line, not directly behind the saw. Release the trigger immediately if you feel resistance.
• Unplug or remove battery before changing blades or making adjustments. A surprising number of injuries happen during “quick” blade swaps with the tool still powered.
• Inspect blades regularly: Dull, chipped, or bent blades increase friction and kickback risk. Replace or sharpen as needed.
• Use the right blade for the material: Cutting metal or masonry with a wood blade is a recipe for disaster. Match tooth count and blade type to the job.

Many of the best practices emphasized by professional home builders revolve around proper setup and blade maintenance. Skipping these steps is where most DIY accidents originate.

Environmental safety:

• Cut outdoors or in a well-ventilated space when possible.
• Secure your work area, keep kids, pets, and bystanders at a safe distance.
• Never cut materials installed in walls, floors, or ceilings without first checking for electrical wiring, plumbing, or HVAC ducts. Use a stud finder with wire detection.

If you’re new to circular saws, practice on scrap lumber until you’re comfortable with trigger control, blade depth, and guiding the saw along a line. Confidence comes with experience, but safety comes from respecting the tool every single time you pick it up. Renovation experts featured on trusted home improvement platforms consistently stress that preparation and patience prevent the majority of shop injuries.
